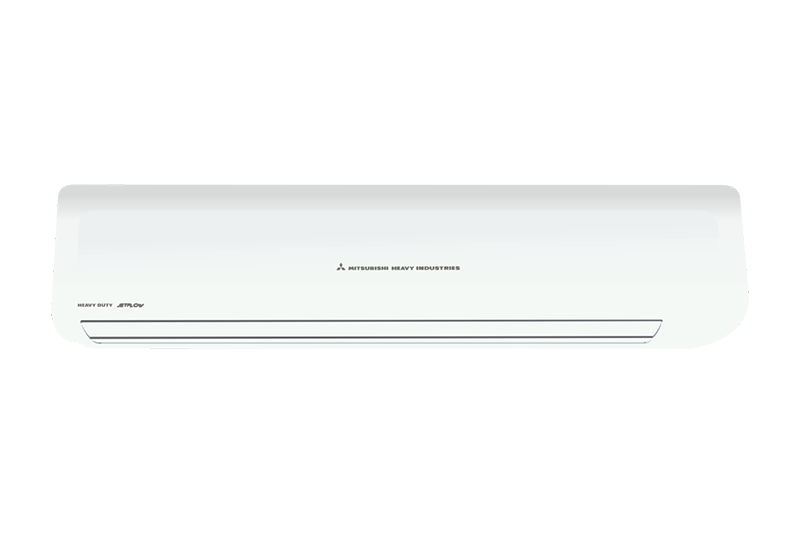

Mitsubishi Heavy Industries 1.6 Ton 3 Star Non-Inverter Split AC with 3D Air Flow + Jet Flow Technology + Self-Clean + Enzyme Filter (SRK20CXS-W6)
- Fixed-Speed Super Tropical Compressor (up to 55°C) | Dual Capillary | 100% Copper
- 3 Star BEE Rating | 1.6 Ton | Area: 170–250 sq ft | R32
- Jet Engine Technology — Long Reach Air Flow (17 m)
- 3D Air Flow + Enzyme + Photocatalytic Filter + Self-Clean + Anti-Microbial Fan
- Indoor Unit: 339 × 1197 × 262 mm (H × W × D) | Outdoor Unit: 595 × 780 × 290 mm (H × W × D)
- Country: Thailand | Warranty: 1 Year Comprehensive + 10 Year Compressor
3D Air Flow Technology + Jet Engine Long Reach Air Flow
The SRK20CXS-W6 1.6 Ton 3 Star Non-Inverter Split AC uses three independently controlled motors — one main vertical vane plus two lateral horizontal vanes — for simultaneous multi-directional air delivery covering every corner. Jet Engine Technology (CFD-optimised blade design) drives air to 17 m reach with uniform temperature distribution. 3D Auto mode adjusts direction and speed automatically based on room temperature gradients.
Enzyme + Photocatalytic Deodorizing Filter + Anti-Microbial Fan
Three-stage air purification built-in: Enzyme Filter breaks down odour molecules; Photocatalytic Deodorizing Filter neutralises volatile compounds and bacteria on contact; Anti-Microbial Blower Fan (Anti-Mould, Anti-Bacterial) prevents secondary contamination. Self-Clean Operation runs automatically for 2 hours after shutoff — dries internal components to prevent mould and bacterial growth.
Super Tropical Fixed-Speed Compressor — 3 Star BEE
Dual Capillary Expansion for precise refrigerant control. Super Tropical Compressor operates in ambient up to 55°C — designed for Indian summers. Coverage: 170–250 sq ft. Self-Diagnosis covers 30+ fault codes on remote LCD display — reduces need for service calls for minor faults.
10 Protective Shield + 100% Copper Construction
10-layer Protective Shield monitors compressor, indoor/outdoor motors, heat exchangers, PCB, and signal lines — auto-shuts on abnormal conditions. 100% Copper tubing and heat exchanger for superior thermal conductivity, corrosion resistance, and longer service life vs aluminium. Refrigerant: R32.
3-Stage Air Purification
Enzyme Filter + Photocatalytic Deodorizing Filter + Anti-Microbial Fan. Self-Clean Operation dries internal parts for 2 hours after shutoff to prevent mould.
100% Copper + 10 Shield
100% Copper tubing + heat exchanger. 10 Protective Shield sensors cover compressor / motors / PCB / heat exchangers — auto fault protection.
3D Air Flow (3 Motors)
Three independently controlled motors deliver air in all directions simultaneously — main vertical vane + two lateral horizontal vanes. 3D Auto adjusts direction and speed based on room temperature.
Jet Flow Technology
Jet Engine CFD-optimised blade design drives air to 17 m reach. Uniform temperature distribution for large rooms without hot spots or cold zones.
3★ BEE Rating
Fixed-speed Super Tropical compressor with Dual Capillary Expansion. Operates at ambient up to 55°C. Self-Diagnosis with 30+ fault codes displayed on remote.
